MAIN  FEATURE

 Stylish design with plastic shell, inspired by “TRANSFORMERS”;
 Using the simple and clear buttons to operate;
 Using DSP chip to control and data processing, high speed, low power consumption;
 160μm Large measurement range;
 Compatible with ISO, DIN, ANSI, JIS national standards;
 4 Profile Filter: Gauss  RC  PC-RC  DP
 128 × 64 dot matrix display, Bright OLED , no viewing angle;
 Intuitive and rich display information, can display all of the parameters and graphics, device states, battery indicator;
 Large capacity data storage, can store 100 item of raw data and wave forms;
 Built-in lithium-ion rechargeable battery and control circuit, high capacity, no memory effect;
 more than 20 hours continuous working time ;
 Real-time clock settings and display, convenient data recording and storage;
 With automatic sleep, automatic shutdown power-saving features;
 Include PC software, can be connected to a computer and printer;

RANGE

TECHNICAL DATA

Name			Content
Measurement Range		The Z axis (vertical)	160μm
		The X axis (horizontal)	17.5mm/ 0.69"
Resolution ratio		The Z axis (vertical)	0.002μm/±20μm
			0.004μm/±40μm
			0.008μm/±80μm
Measurement item		22 roughness parameters	Ra Rz Rq Rt Rp Rv R3z R3y Rz(JIS) Rs Rsk Rsm Rku Rmr Ry Rmax Rpc Rk Rpk Rvk Mr1 Mr2
		Standard	ISO4287, ANSI b46.1, DIN4768, JISb601
		Graphic	Material ratio curve of the profile
Filter			RC,PC-RC,Gauss,D-P
The sampling length(lr)			0.25, 0.8, 2.5mm
Assessment length（ln）			Ln= lr×n    n=1~5
Sensor	Principle		Differential Inductance
	Stylus		Natural Diamond, 90°cone angle, 5μm tip radius
	Force		<4mN
	Skid		hard alloy , Longitudinal radius 40mm
	Traversing speed		lr=0.25,   Vt=0.135mm/s
			lr=0.8,    Vt=0. 5mm/s
			lr=2. 5,    Vt=1mm/s
			Return      Vt=1mm/s
Accuracy			±(5nm+0.1A)    A:  Ra of calibration test block
Repeatability			Not greater than 3%
Residual profile			Not greater than 0.010μm
Power supply			Built-in 3.7V 850mAh Lithium ion, Charger :Input AC100-240_50/60Hz Output: DC5V, 1000mA/3hour
Working Time			More than 20 hours
Outline dimension L×W×H			158×63.5×46mm
Weight			About 300g
working Environment			Temperature：- 20℃ ~  40℃ Humidity：< 90% RH
Store and Transportation			Temperature：- 40℃  ~   60℃ Humidity：< 90% RH

































STANDARD SENSOR

The standard sensor for this instrument is the small hole sensor

STANDARD DELIVERY

ITEM	QTY
Host	1 PC
Small Hole Sensor TS100	1 PC
Standard Calibration Block	1 PC
Bracket for Calibration Block	1 PC
Adjustable Support	1 PC
Power Charger	1 PC
USB Cable	1 PC
PC Software	1 PC
User manual	1 PC
Instrument case	1 PC
Warranty	2 Years













RELATED OPTIONAL ITEMS

Image	Description

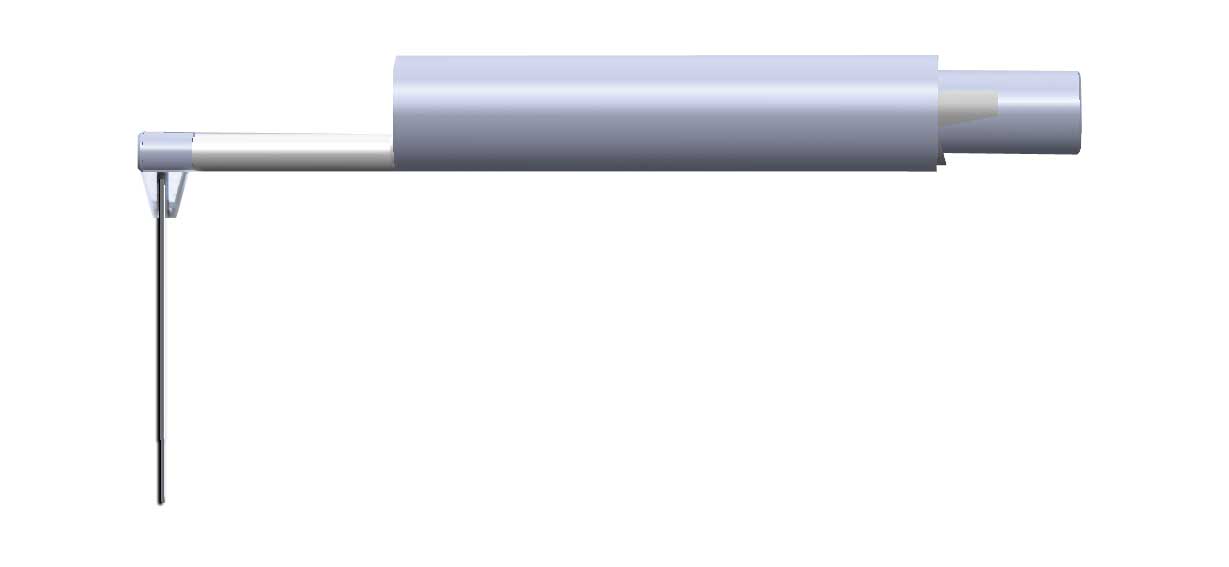

	TS55 - Extending Rod, Extending the length of sensor (extending 50mm) , can add 3 pieces in maximum.
	TS90 - Right Angle Rod, change the direction of sensor to make it move in transverse , mostly for surface of particular groove such as crankshaft etc.

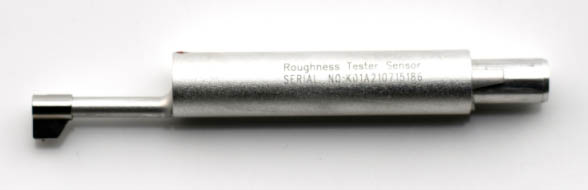

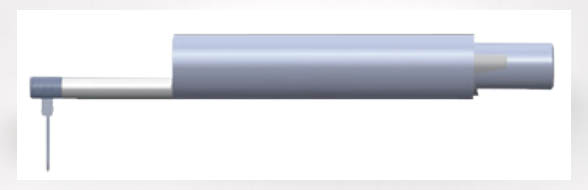

	TS100 - Small Hole Sensor, for most of the plane, inclined plane, cone work piece, and measures in holes of a diameter  ＞5mm and a depth＜15mm.
	TS110 - Curved Surface Sensor, for convex or concave surfaces with a curvature radius of 3 mm or more.
	TS120 -very small hole Sensor, in holes of a diameter  ＞2mm and a depth＜9mm..

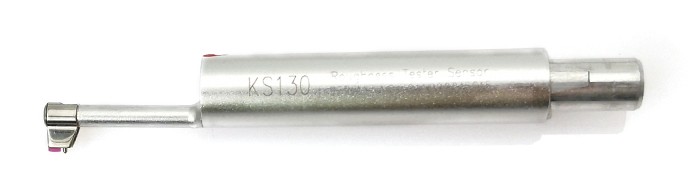

	TS130 - Groove sensor, measuring in grooves with a width greater than 3 mm and a depth less than 3.2mm, the distance from the stylus tip to the front edge is 3mm.
	TS160 - Axe type Sensor, measuring in grooves with a width greater than 3 mm and a depth less than 3.2mm, the distance from the stylus tip to the front edge is 1.6mm. Measuring for flat surface when used for split type roughness tester.

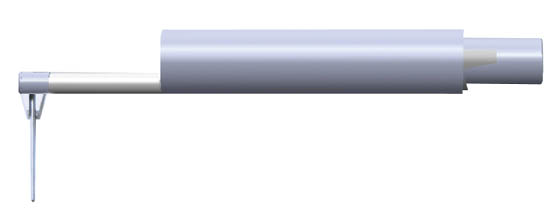

	TS131 - Deep Groove Sensor, in grooves with a width greater than 3 mm and a depth less than 10 mm. and measures steps less than 10mm in height.

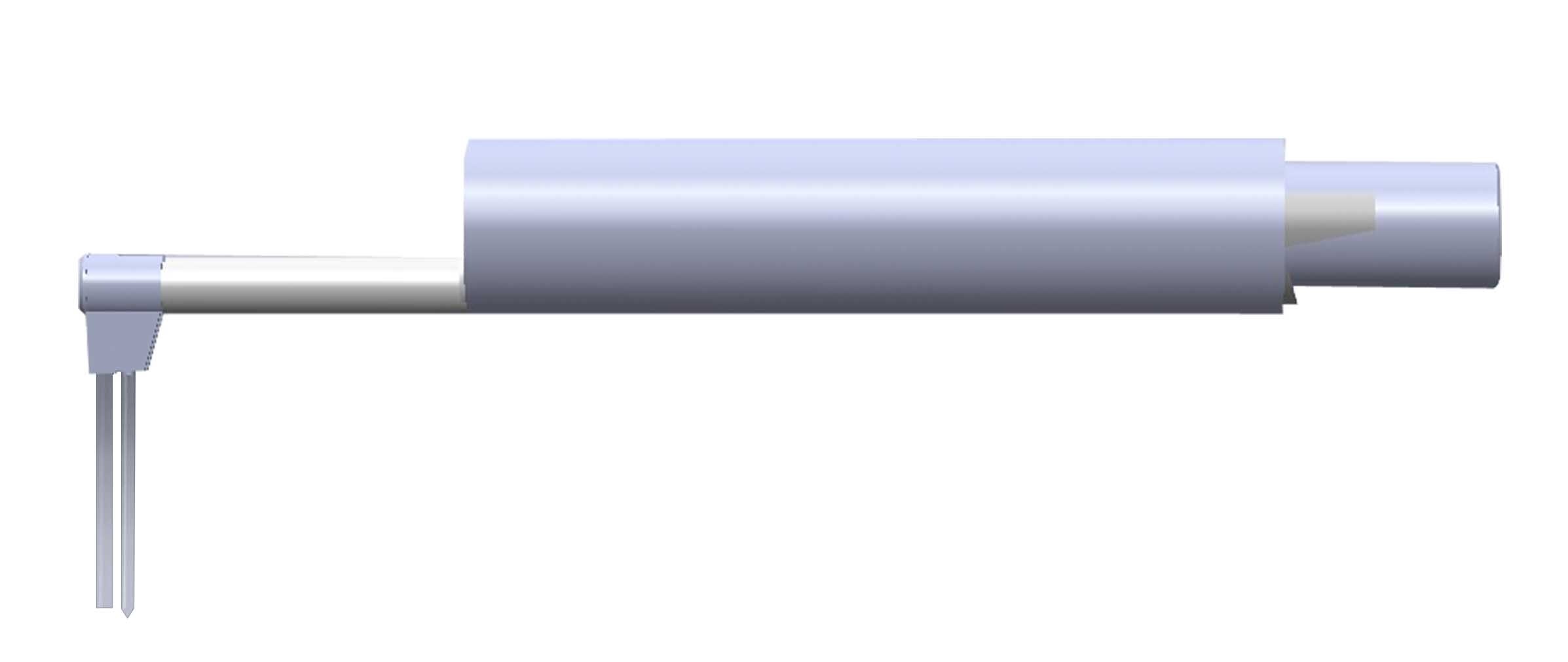

	TS131P - 7mm Groove & Curved Sensor, in grooves with a width ＞ 1.5 mm and a depth＜ 7 mm. and measures steps less than 10mm in height.
	TS132 - 13mm Groove & Curved Sensor, in grooves with a width ＞ 2mm and a depth ＜13mm, and measures steps less than 15mm
	TS133 - 13mm narrow Groove Sensor, in grooves with a width ＞ 1.2mm and a depth ＜13mm, and and measures steps less than ＜15mm
	TS135 - 23mm Groove Sensor, in grooves with a width ＞ 2mm and a depth ＜23mm. and measures steps less than ＜25mm

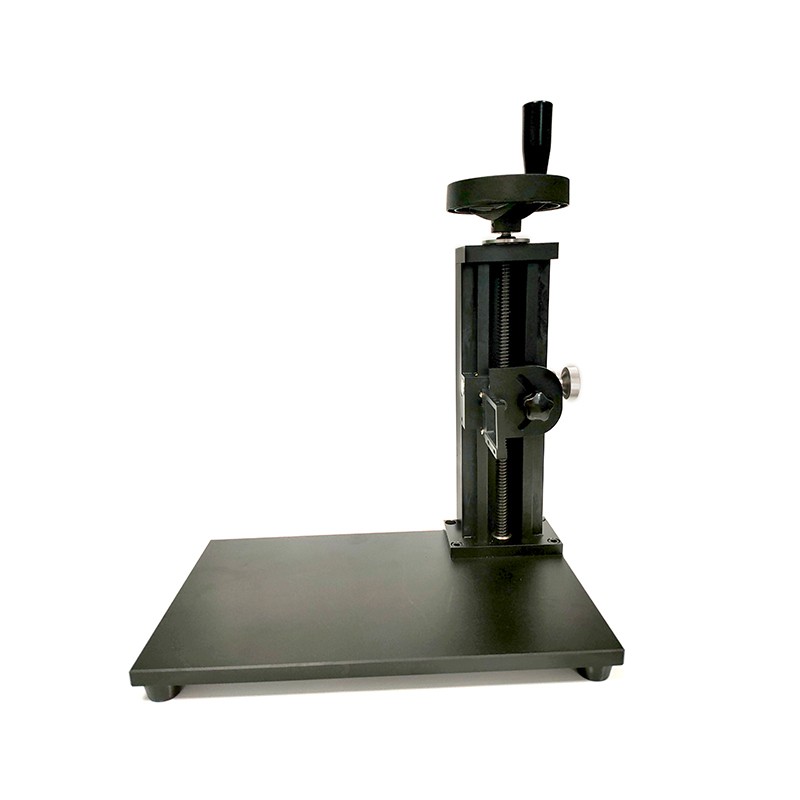

	TA520 -Metal Substrate Working platform, elevating, convenient and stable for test process. 1. Height Adjustable: 200±1mm 2. Return error: ≤1/6 round of lifting wheel 3. Base Size: 330mm×295mm×12mm 4. Rotation angle：80degrees Packing Size & weight: 42*21*15cm 5KG

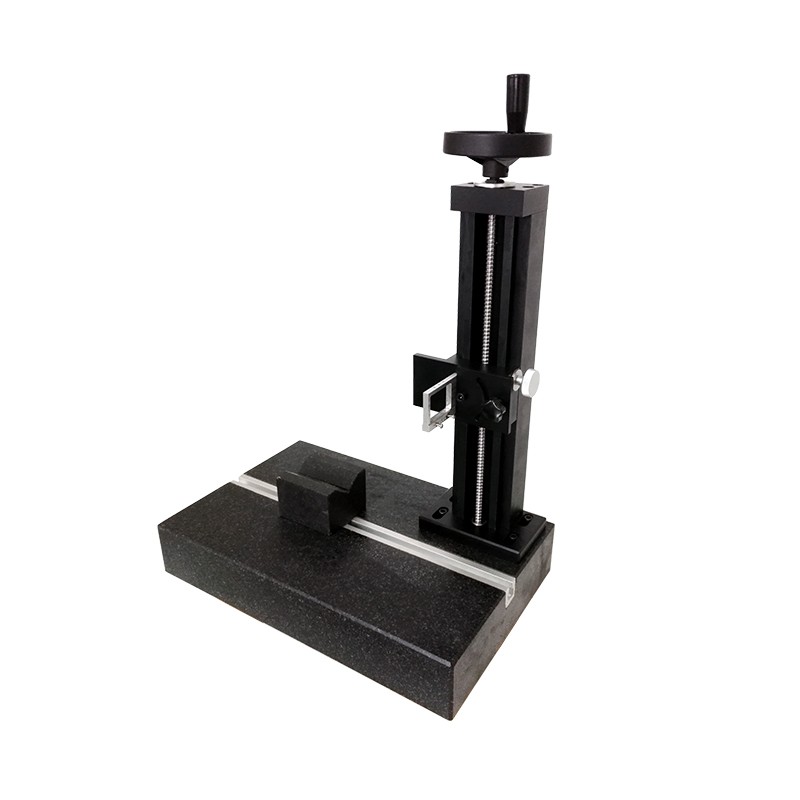

	TA620 -Marble Substrate Working Platform, include V block 1.Height Adjustable: 300±1mm, 2.Return error: ≤1/6 round of lifting wheel 3. Marble Size: 400mm×250mm×70mm, 4.Rotation angle: 80 degrees Packing Size & weight: column 54*24*15cm, 4.5kg;  marble base 43.5*28.5*10cm ,23kg

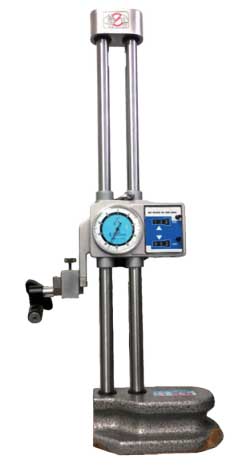

	Height Gauge, adjust height and direction of a tester. Especially suit for split type surface roughness tester, Adjustable maximum height: 300mm.

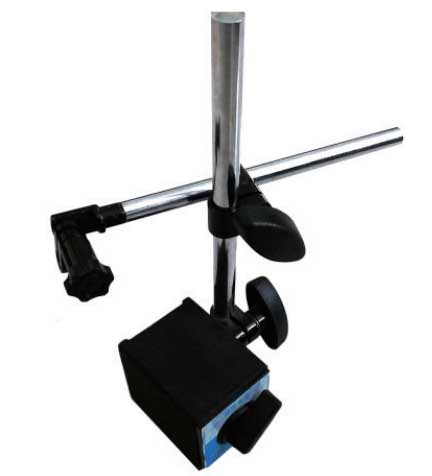

	Magnetic Stand, arm length: about 200mm including joint. The column: about 200mm in height including base.  Adjustable maximum height: 150mm Rod of the magnetic adaptor ( the part attached to the tester)  φ8mm

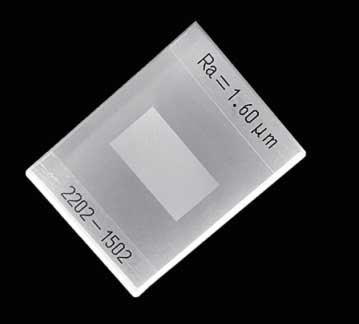

	Standard Roughness Calibration Block  Multi-reticle specimen(Square Wave) Made by optical glass, with high hardness, high accuracy standard roughness value, anti-scratch, has longer life than metal roughness block. Meet standard GB/T19067.1-2003 and ISO5436-1:2000 Approximation: Ra=0.1μm, 0.2μm, 0.4μm, 0.8μm, 1.6μm, 3.2μm, 6.4μm Customized Value and Sine Wave available, welcome to inquire.

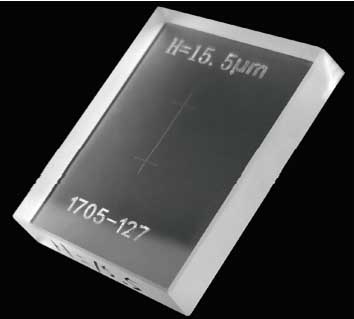

	Roughness Calibration Block  Single engraved lines Meet standard GB/T19067.1-2003 and ISO5436-1:2000 Approximation: H10-20μm   （roughness tester use filter D-P, test RT value） Customized Value available, welcome to inquire.

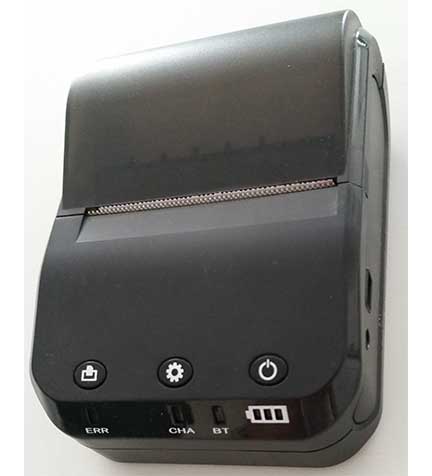

	Mini thermal printer Size： 108*76*46.6mm External printer,  interface: USB, Blue Tooth, the Baud rate will be set accordingly for connecting tester before delivery. suitable for our surface roughness tester, hardness tester, thickness gauge.   Paper size:  width is （57.5±0.5）mm, diameter is 30mm
